| overview | |||
| model |
ULT-5/5-D48
|
manufacturer | MURATA |
| series | ULT | Category | DC/DC |
| Function Description |
|
||
| detailed parameters | |||
| model | ULT-5/5-D48 | Stable voltage output | REGULATED（1-3%） |
| output power | 25W | Short circuit protection | CONTINUOUS |
| input voltage | 36-75VDC | temperature range | -40˚cto+85˚c |
| Output voltage | 5VDC | efficiency | 87 % |
| package | Is it imported | Y | |
| Package Size | 23.4x19.05x8.9mm | authentication | RoHS,CE |
| maximum output current | 5A | Grade | High quality |
| Isolation Voltage | 1500 VDC | Housing material | |

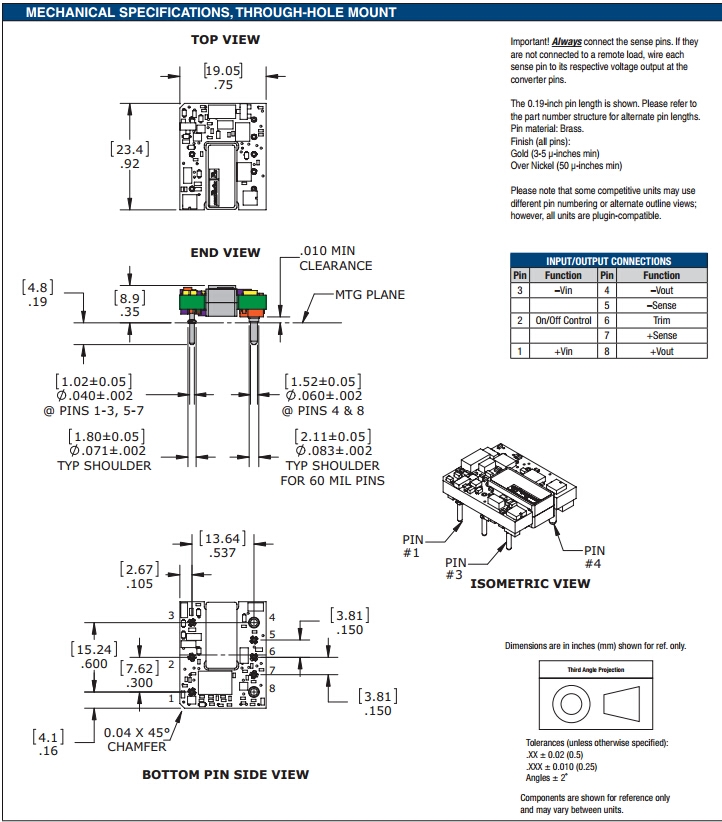

| Pin arrangement diagram | view | ||
